剝線機_電腦剝線機|常州市禾昌智能科技有限公司剝線機行業首選
獲取更多的產品信息和價格優惠 18661139660
獲取更多的產品信息和價格優惠 18661139660
產品相冊：

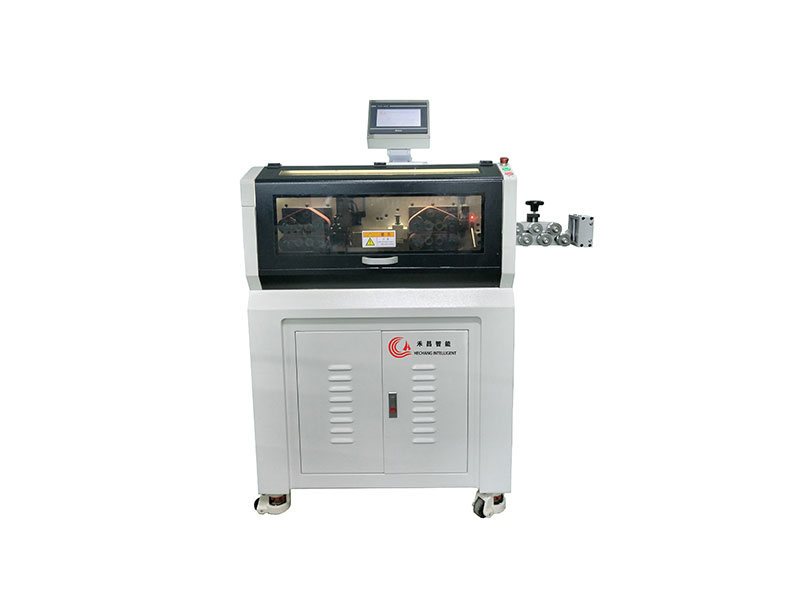

特點說明Characteristic description

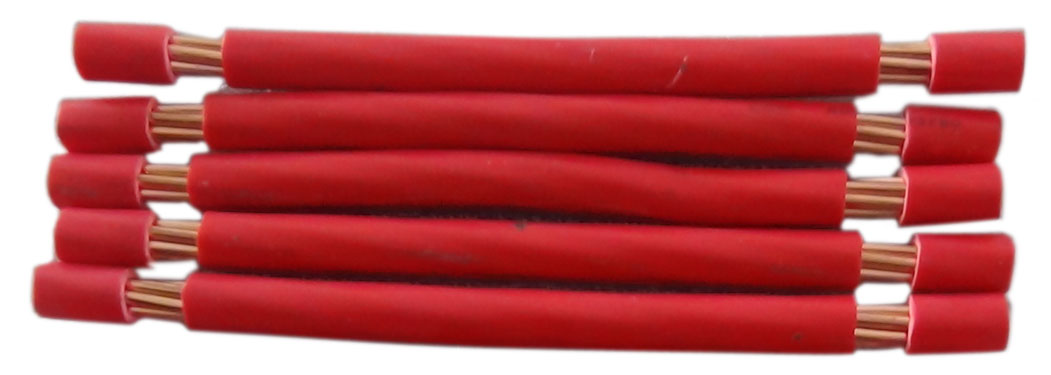

這款機器主要針對汽車行業、電力行業，電控柜，電池盒的線，可把整卷電線按照所需要的長度、剝頭進行切斷剝皮，從而大大提高了效率,BV硬線，BVR軟線都好用。
This machine mainly aims at autocar craft， electric power craft，the electricity controls a cubicle，the wire of battery box，can the whole electric wire according to need of length，shelled progress to slice well and shell well and thus to consumedly raise an efficiency. BV hardline, BVR the soft wire is all friendly.
機型規格Model specification
型號Model | HC-608L2 |
外形尺寸Dimensions | L1005X685X1250mm |
重量Weight | 180kg |
顯示方式Display | 中文，液晶 Chinese interface LCD display or English interface |
電源Power | 220V/2000W |
切割長度Cutting length | 1mm-9999.99mm |
前端剝皮長度Stripping Leight | 護套線MAX 300mm 電纜線全脫MAX 70mm |
后端剝皮長度 | 護套線MAX 200mm 電纜線全脫MAX 120mm |
剝線范圍Cutting tolerance | 10-95mm2 BVR多股軟線 RVR |
導線類型Wire Material | 導管跳動型 |
切割公差Cutting tolerance | Within 0.002xLmm※L=cutting length |
導管直徑Max. wire diam | 6-21mm |
驅動方式 Driving way | 皮帶送線，20輪驅動，獨立驅動盒驅動 Twenty wheels driver，independent driver boxdriver |
生產率（次/分）Productivity(pcs/mm) | 650PCS/h, L2=500mm |
氣壓Air Pressure | 0.5-0.75MP |
